Day 18: Automated Testing of Terraform Infrastructure

Day 16 added a single Terratest test that deploys the FastAPI module and asserts that /health returns 200. That is a good starting point, but it is not a testing strategy. A single test that takes 8 minutes to run and costs $0.50 in EC2 time is not something you run on every commit.

A real testing strategy has layers. Fast, cheap tests run first. Slow, expensive tests run only when the fast tests pass. Each layer catches different categories of failure.

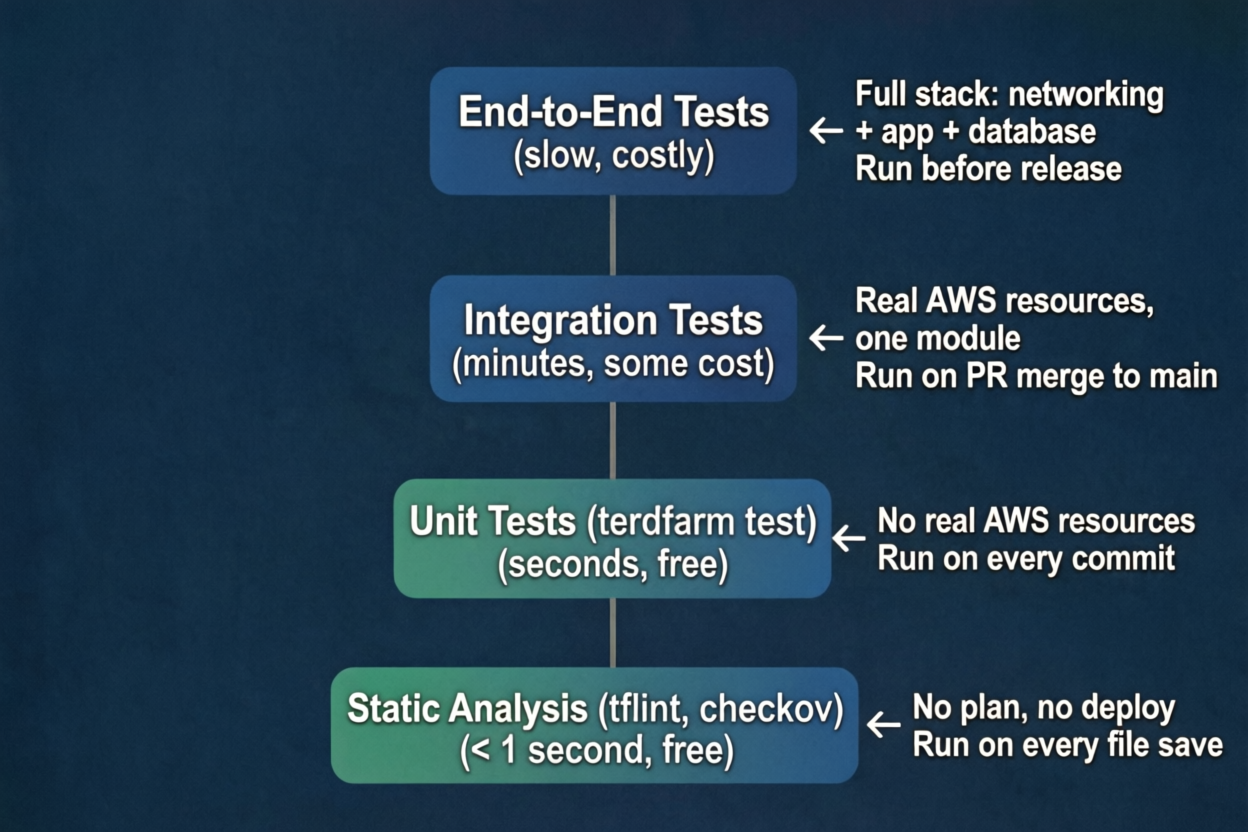

The Terraform Testing Pyramid

The layers are cumulative, not independent: each one adds a category of confidence that the layer below cannot provide. A passing unit test is only meaningful if static analysis already passed; a passing integration test is only meaningful if unit tests already passed.

What goes where — the decision rule:

• Static if the rule is true regardless of inputs (e.g., "RDS must be encrypted").
• Unit (terraform test) if the rule depends on input variables (e.g., "prod must have min_size >= 2").
• Integration (Terratest) if the rule depends on AWS behaviour (e.g., "the ALB actually routes traffic to a healthy instance").
• E2E if the rule depends on the application working end-to-end (e.g., "POST /items writes a row to RDS").

Layer 1: Static Analysis

Static analysis runs without a plan or deploy. It reads the .tf files directly and flags problems.

tflint — provider-aware linting

terraform validate catches invalid HCL syntax. tflint goes further: it knows the AWS provider schema and catches semantically wrong configurations that validate accepts.

Install:

brew install tflint

Initialize with the AWS ruleset:

tflint --init

This requires a .tflint.hcl config at the repo root:

# .tflint.hcl
plugin "aws" {
  enabled = true
  version = "0.31.0"
  source  = "github.com/terraform-linters/tflint-ruleset-aws"
}

Run against the module:

tflint --recursive

What tflint catches that terraform validate misses:

# validate passes this — the attribute is valid HCL
resource "aws_instance" "web" {
  instance_type = "t4.micro"   # not a real instance type — tflint catches it
}

# validate passes this too
resource "aws_autoscaling_group" "web" {
  health_check_type = "elb"   # wrong case — must be "ELB"
}

t4.micro is not a real EC2 instance type (the t4g.* family exists, but no plain t4). tflint catches it via the AWS provider's instance-type catalog; terraform validate only knows that instance_type is a string and the value is a string, so it accepts anything.

checkov — security and compliance scanning

checkov evaluates your Terraform configuration against a library of security and compliance rules: CIS AWS Foundations, NIST, PCI-DSS, and others.

Install:

pip3 install checkov

Run:

checkov -d . --framework terraform

Example output on the FastAPI module (check IDs change between checkov releases — the categories are what matter):

FAILED  Ensure Instance Metadata Service Version 1 is not enabled
        resource: aws_launch_template.web

FAILED  Ensure all data stored in EBS is securely encrypted
        resource: aws_launch_template.web

PASSED  Ensure that EC2 is EBS optimized
        resource: aws_launch_template.web

Each failure is a real security gap. The IMDSv1 check is important — enabling IMDSv2-only closes a class of SSRF attack that can steal EC2 instance credentials.

Fix in the launch template:

resource "aws_launch_template" "web" {
  # ...

  # Require IMDSv2 — disables the older token-optional endpoint
  metadata_options {
    http_endpoint               = "enabled"
    http_tokens                 = "required"   # "optional" allows IMDSv1
    http_put_response_hop_limit = 1
  }

  # Encrypt the root volume
  block_device_mappings {
    device_name = "/dev/xvda"
    ebs {
      volume_size           = 20
      encrypted             = true
      delete_on_termination = true
    }
  }
}

Add checkov to CI and fail the pipeline on any HIGH or CRITICAL severity finding:

checkov -d . --framework terraform --check HIGH,CRITICAL --compact

Layer 2: Unit Tests with terraform test

Terraform 1.6 introduced a built-in testing framework, and Terraform 1.7 added mock_provider blocks. Unit tests use mock providers — no AWS API calls, no real resources, no cost, and they run in seconds.

Mocking caveat. A bare mock_provider "aws" {} returns a randomly-generated value for every computed attribute. Assertions like output.alb_dns_name != "" will always pass with a mock — not because the output is real, but because the mock invented a value. To make output assertions meaningful, supply explicit return values via override_resource / mock_resource blocks. Asserting on attributes that the user set (instance_type, min_size) is reliable; asserting on AWS-computed values (arn, dns_name) is not, with bare mocks.

Test files use the .tftest.hcl extension and live alongside the module:

modules/
└── web-app/
    ├── main.tf
    ├── variables.tf
    ├── outputs.tf
    └── tests/
        ├── unit.tftest.hcl
        └── integration.tftest.hcl

Writing a unit test

# modules/web-app/tests/unit.tftest.hcl

# Override the AWS provider with a mock — no real API calls
mock_provider "aws" {}

# Test 1: default variable values produce the expected resource configuration
run "defaults_produce_correct_config" {
  command = plan   # plan only — no apply

  variables {
    environment   = "test"
    instance_type = "t2.micro"
    min_size      = 1
    max_size      = 2
    user_data     = "#!/bin/bash\necho hello"
  }

  assert {
    condition     = aws_launch_template.web.instance_type == "t2.micro"
    error_message = "Expected instance_type to be t2.micro, got: ${aws_launch_template.web.instance_type}"
  }

  assert {
    condition     = aws_autoscaling_group.web.min_size == 1
    error_message = "Expected min_size to be 1, got: ${aws_autoscaling_group.web.min_size}"
  }

  assert {
    condition     = aws_autoscaling_group.web.health_check_type == "ELB"
    error_message = "Health check type must be ELB, not EC2"
  }
}

# Test 2: prod environment enforces minimum capacity
run "prod_enforces_min_size" {
  command = plan

  variables {
    environment   = "prod"
    instance_type = "t3.small"
    min_size      = 2
    max_size      = 6
    user_data     = "#!/bin/bash\necho hello"
  }

  assert {
    condition     = aws_autoscaling_group.web.min_size >= 2
    error_message = "prod environment must have min_size >= 2"
  }
}

# Test 3: monitoring is enabled in prod
run "prod_has_monitoring" {
  command = plan

  variables {
    environment      = "prod"
    instance_type    = "t3.small"
    min_size         = 2
    max_size         = 6
    user_data        = "#!/bin/bash\necho hello"
    enable_monitoring = true
  }

  assert {
    condition     = length(aws_cloudwatch_metric_alarm.cpu_high) == 1
    error_message = "prod environment must have CPU alarm enabled"
  }
}

Run the unit tests:

terraform test -filter=tests/unit.tftest.hcl

Output:

web-app/tests/unit.tftest.hcl... pass
  run "defaults_produce_correct_config"... pass
  run "prod_enforces_min_size"... pass
  run "prod_has_monitoring"... pass

These tests run in under 3 seconds. No AWS credentials needed. They validate the module's logic — the relationship between inputs and the resource configuration they produce.

What unit tests catch

• A variable with the wrong default being used by a resource
• A conditional (count = var.enable_monitoring ? 1 : 0) that is inverted
• A for_each that produces more or fewer resources than expected
• An output that references the wrong attribute

What they do not catch: whether the IAM role has the right permissions, whether the security group allows the right traffic, whether the app actually starts on the instance.

Layer 3: Integration Tests with Terratest

Integration tests deploy real AWS resources, verify real behavior, and destroy everything afterward. They catch what unit tests cannot: configuration that is syntactically correct but operationally wrong.

The complete test file for the web-app module:

// test/web_app_test.go
package test

import (
    "fmt"
    "net/http"
    "testing"
    "time"

    "github.com/gruntwork-io/terratest/modules/aws"
    "github.com/gruntwork-io/terratest/modules/random"
    "github.com/gruntwork-io/terratest/modules/terraform"
    "github.com/stretchr/testify/assert"
    "github.com/stretchr/testify/require"
)

func TestWebAppModule(t *testing.T) {
    t.Parallel()   // run multiple test functions concurrently

    // Unique suffix prevents resource name collisions when tests run in parallel
    uniqueID := random.UniqueId()
    environment := fmt.Sprintf("test-%s", uniqueID)

    terraformOptions := &terraform.Options{
        TerraformDir: "../modules/web-app",
        Vars: map[string]interface{}{
            "environment":   environment,
            "instance_type": "t2.micro",
            "min_size":      1,
            "max_size":      2,
            "user_data":     buildUserData(),
        },
        // Retry plan/apply up to 3 times on transient AWS errors
        MaxRetries:         3,
        TimeBetweenRetries: 5 * time.Second,
        NoColor:            true,
    }

    // Always destroy — even if an assertion panics
    defer terraform.Destroy(t, terraformOptions)

    terraform.InitAndApply(t, terraformOptions)

    // Test 1: ALB DNS name is a non-empty string
    albDNS := terraform.Output(t, terraformOptions, "alb_dns_name")
    assert.NotEmpty(t, albDNS, "alb_dns_name output should not be empty")

    // Test 2: health endpoint returns 200
    assertHealthEndpoint(t, albDNS, 30, 10*time.Second)

    // Test 3: ASG exists and has the correct desired capacity
    asgName := terraform.Output(t, terraformOptions, "asg_name")
    capacity := aws.GetCapacityInfoForAsg(t, "us-east-1", asgName)
    assert.Equal(t, int64(1), capacity.DesiredCapacity,
        "ASG desired capacity should be 1 for test environment")

    // Test 4: all instances in the target group are healthy
    tgArn := terraform.Output(t, terraformOptions, "target_group_arn")
    assertAllTargetsHealthy(t, tgArn, "us-east-1")
}

func assertHealthEndpoint(t *testing.T, albDNS string, maxRetries int, sleep time.Duration) {
    t.Helper()
    url := fmt.Sprintf("http://%s/health", albDNS)

    for i := 0; i < maxRetries; i++ {
        resp, err := http.Get(url)
        if err == nil && resp.StatusCode == http.StatusOK {
            t.Logf("Health check passed on attempt %d", i+1)
            return
        }
        t.Logf("Attempt %d/%d failed (%v), retrying in %s", i+1, maxRetries, err, sleep)
        time.Sleep(sleep)
    }
    require.Fail(t, fmt.Sprintf("Health check at %s never returned 200 after %d attempts", url, maxRetries))
}

func assertAllTargetsHealthy(t *testing.T, tgArn string, region string) {
    t.Helper()
    // Wait up to 5 minutes for all targets to become healthy
    for i := 0; i < 30; i++ {
        targets := aws.GetTargetHealthForTargetGroup(t, region, tgArn)
        allHealthy := true
        for _, target := range targets {
            if aws.GetTargetHealthState(target) != "healthy" {
                allHealthy = false
                break
            }
        }
        if allHealthy {
            t.Log("All targets healthy")
            return
        }
        time.Sleep(10 * time.Second)
    }
    require.Fail(t, "Not all targets became healthy within 5 minutes")
}

func buildUserData() string {
    return `#!/bin/bash
set -e
yum install -y python3 python3-pip
pip3 install fastapi "uvicorn[standard]"
mkdir -p /opt/api
cat > /opt/api/main.py << 'PYEOF'
from fastapi import FastAPI
import socket, datetime
app = FastAPI()
@app.get("/health")
def health():
    return {
        "status": "healthy",
        "hostname": socket.gethostname(),
        "timestamp": datetime.datetime.utcnow().isoformat() + "Z"
    }
PYEOF
cat > /etc/systemd/system/fastapi.service << 'SVCEOF'
[Unit]
Description=FastAPI
After=network.target
[Service]
ExecStart=/usr/local/bin/uvicorn main:app --host 0.0.0.0 --port 8000 --app-dir /opt/api
Restart=always
[Install]
WantedBy=multi-user.target
SVCEOF
systemctl daemon-reload
systemctl enable fastapi
systemctl start fastapi`
}

Heredoc indentation matters. The body of << 'PYEOF' is delivered to the shell verbatim, including any leading whitespace. Indented Python lines like from fastapi import FastAPI will fail with IndentationError. Either left-justify the heredoc body (as above) or use <<- indented heredocs with tabs (the - form only strips leading tabs, not spaces).

Run the integration test:

cd test
go test -v -run TestWebAppModule -timeout 20m

Test stage separation

When debugging a failing integration test, re-running the full deploy-verify-destroy cycle wastes 8–10 minutes. Use environment variables to skip phases:

func TestWebAppModule(t *testing.T) {
    // SKIP_DEPLOY=true reuses existing infrastructure from a prior run
    skipDeploy := os.Getenv("SKIP_DEPLOY") == "true"

    // SKIP_TEARDOWN=true leaves infrastructure running for inspection
    skipTeardown := os.Getenv("SKIP_TEARDOWN") == "true"

    if !skipTeardown {
        defer terraform.Destroy(t, terraformOptions)
    }

    if !skipDeploy {
        terraform.InitAndApply(t, terraformOptions)
    }

    // assertions always run
    assertHealthEndpoint(t, terraform.Output(t, terraformOptions, "alb_dns_name"), 30, 10*time.Second)
}

Typical debugging session:

# First run — deploys infrastructure
go test -v -run TestWebAppModule -timeout 20m

# Test fails at assertAllTargetsHealthy
# Inspect the target group manually in AWS console...
# Fix the bug in the module

# Re-run — skips deploy, tests against existing infrastructure
SKIP_DEPLOY=true go test -v -run TestWebAppModule -timeout 20m

# Fixed — but now skip teardown to inspect the final state before destroying
SKIP_TEARDOWN=true go test -v -run TestWebAppModule -timeout 20m

# Tear down manually
terraform -chdir=modules/web-app destroy

This cuts the iteration cycle from 8 minutes to under 30 seconds for each test-only run.

Caveat. SKIP_DEPLOY=true only works when the second run uses the same TerraformDir as the first — the state file must still be reachable. If your tests use test_structure.CopyTerraformFolderToTemp to isolate runs in temp directories, this pattern needs adapting (persist the temp path to disk between runs, or skip the copy when SKIP_DEPLOY is set).

Layer 4: End-to-End Tests

End-to-end tests deploy the complete stack — networking, app, database — and test the application's behavior through its API. They are the most expensive to run and the closest to a real user interaction.

func TestFullStackE2E(t *testing.T) {
    // E2E tests are opt-in — only run when explicitly requested
    if os.Getenv("RUN_E2E_TESTS") != "true" {
        t.Skip("Skipping E2E test — set RUN_E2E_TESTS=true to run")
    }

    uniqueID := random.UniqueId()
    environment := fmt.Sprintf("e2e-%s", uniqueID)

    // Deploy the full root module, not just one sub-module
    terraformOptions := &terraform.Options{
        TerraformDir: "../",  // root config with networking + app + rds
        Vars: map[string]interface{}{
            "environment":      environment,
            "instance_type":    "t3.small",
            "min_size":         1,
            "max_size":         2,
            "db_instance_class": "db.t3.micro",
        },
        NoColor: true,
    }

    defer terraform.Destroy(t, terraformOptions)
    terraform.InitAndApply(t, terraformOptions)

    albDNS := terraform.Output(t, terraformOptions, "alb_dns_name")

    // Test the /items endpoint — requires database connectivity
    assertHealthEndpoint(t, albDNS, 30, 10*time.Second)
    assertItemsEndpoint(t, albDNS)
}

func assertItemsEndpoint(t *testing.T, albDNS string) {
    t.Helper()

    // Create an item
    createURL := fmt.Sprintf("http://%s/items", albDNS)
    body := strings.NewReader(`{"name": "test-item", "price": 9.99}`)
    resp, err := http.Post(createURL, "application/json", body)
    require.NoError(t, err)
    assert.Equal(t, http.StatusCreated, resp.StatusCode)

    // Read it back
    var created map[string]interface{}
    json.NewDecoder(resp.Body).Decode(&created)
    itemID := created["id"].(string)

    getURL := fmt.Sprintf("http://%s/items/%s", albDNS, itemID)
    getResp, err := http.Get(getURL)
    require.NoError(t, err)
    assert.Equal(t, http.StatusOK, getResp.StatusCode)
}

E2E tests validate the parts of the stack that integration tests skip:

• Database connectivity from the app through the private subnet
• Secrets Manager secret correctly decoded and used for database credentials
• VPC routing between subnets (NAT Gateway for outbound, ALB for inbound)
• IAM role has the right permissions across all three AWS services

Other Testing Approaches

Policy-as-code with OPA

Open Policy Agent (OPA) evaluates Terraform plans against a policy rulebook before apply. Unlike checkov (which reads .tf files), OPA reads the JSON plan output — it catches issues that only become visible after planning. The common wrapper for this in the Terraform ecosystem is conftest, which packages OPA with sensible defaults for plan evaluation; HashiCorp's commercial equivalent is Sentinel (in Terraform Cloud/Enterprise).

# Generate a JSON plan
terraform plan -out=tfplan
terraform show -json tfplan > plan.json

# Evaluate with conftest (uses OPA underneath)
conftest test --policy policies/ plan.json

# Or raw OPA, equivalent
opa eval --data policies/ --input plan.json "data.terraform.deny"

Example OPA policy that blocks unencrypted RDS instances:

# policies/rds.rego
package terraform

deny[msg] {
    resource := input.resource_changes[_]
    resource.type == "aws_db_instance"
    resource.change.after.storage_encrypted == false
    msg := sprintf("RDS instance '%s' must have storage_encrypted = true", [resource.address])
}

OPA policies become the machine-readable version of your compliance requirements. They run in milliseconds and fail the CI pipeline with a specific, actionable message.

terraform test for module contracts

One pattern that works well with terraform test is testing the contract between a module's inputs and its outputs — not the internal resource configuration, but what the module promises to callers.

# modules/web-app/tests/contract.tftest.hcl

mock_provider "aws" {}

run "outputs_are_populated" {
  command = apply   # apply with mock provider — no real resources

  variables {
    environment   = "test"
    instance_type = "t2.micro"
    min_size      = 1
    max_size      = 2
    user_data     = "#!/bin/bash\necho hello"
  }

  assert {
    condition     = output.alb_dns_name != ""
    error_message = "alb_dns_name output must not be empty"
  }

  assert {
    condition     = output.alb_zone_id != ""
    error_message = "alb_zone_id output must not be empty — required for Route 53 alias records"
  }

  assert {
    condition     = output.asg_name != ""
    error_message = "asg_name output must not be empty"
  }
}

This runs with a mock provider (apply works because the mock returns fake values for all computed attributes). The test guarantees that any caller of this module can depend on these outputs being present — a regression test for the module's public API.

Wiring Into CI/CD

Tests run in three stages in GitHub Actions, matching the pyramid:

# .github/workflows/test.yml
name: Terraform Tests

on:
  push:
    branches: ["**"]
  pull_request:
    branches: [main]

jobs:
  # Stage 1: static analysis — runs on every push, < 30 seconds
  static:
    name: Static Analysis
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - name: Setup Terraform
        uses: hashicorp/setup-terraform@v3

      - name: terraform fmt check
        run: terraform fmt -recursive -check
        working-directory: modules/web-app

      - name: terraform validate
        run: |
          terraform init -backend=false
          terraform validate
        working-directory: modules/web-app

      - name: tflint
        uses: terraform-linters/setup-tflint@v4
        with:
          tflint_version: v0.50.3
      - run: |
          tflint --init
          tflint --recursive
        working-directory: modules/web-app

      - name: checkov security scan
        uses: bridgecrewio/checkov-action@v12
        with:
          directory: modules/web-app
          framework: terraform
          check: HIGH,CRITICAL

  # Stage 2: unit tests — runs on every push, < 10 seconds
  unit:
    name: Unit Tests
    runs-on: ubuntu-latest
    needs: static
    steps:
      - uses: actions/checkout@v4

      - name: Setup Terraform
        uses: hashicorp/setup-terraform@v3
        with:
          terraform_version: "~> 1.6"

      - name: terraform test (unit)
        run: terraform test -filter=tests/unit.tftest.hcl
        working-directory: modules/web-app

  # Stage 3: integration tests — runs on PRs to main only (costs money)
  integration:
    name: Integration Tests
    runs-on: ubuntu-latest
    needs: unit
    if: github.event_name == 'pull_request' && github.base_ref == 'main'
    permissions:
      id-token: write   # required for OIDC
      contents: read
    steps:
      - uses: actions/checkout@v4

      - name: Configure AWS credentials (OIDC)
        uses: aws-actions/configure-aws-credentials@v4
        with:
          role-to-assume: arn:aws:iam::${{ secrets.AWS_ACCOUNT_ID }}:role/GitHubActionsRole
          aws-region: us-east-1

      - name: Setup Go
        uses: actions/setup-go@v5
        with:
          go-version: "1.21"

      - name: Run integration tests
        run: go test -v -run TestWebAppModule -timeout 30m
        working-directory: test
        env:
          AWS_REGION: us-east-1

The three stages are gates: integration tests only run if unit tests pass. Unit tests only run if static analysis passes. A formatting error does not burn EC2 time running Terratest.

E2E tests: manual trigger only

E2E tests are expensive enough that they should never run automatically on every PR:

  e2e:
    name: E2E Tests
    runs-on: ubuntu-latest
    if: github.event_name == 'workflow_dispatch'   # manual trigger only
    # ...
    steps:
      - name: Run E2E tests
        run: go test -v -run TestFullStackE2E -timeout 60m
        env:
          RUN_E2E_TESTS: "true"

Trigger manually from the GitHub Actions UI before a major release.

Retrying a failed integration run. Because the stages are gated by needs:, a transient AWS failure in the integration job means re-running the whole workflow re-runs static + unit too. Add workflow_dispatch to the workflow triggers and pick "Re-run failed jobs" from the Actions UI to retry only the failed stage.

Test Cost Management

Integration tests deploy real AWS resources. Without discipline, this cost accumulates quickly.

Use the smallest viable resources

// In test fixtures, always override to minimum sizes
Vars: map[string]interface{}{
    "instance_type":     "t2.micro",     // not t3.small
    "min_size":          1,              // not 2
    "db_instance_class": "db.t3.micro", // not db.t3.small
    "multi_az":          false,          // never in tests
},

Always defer terraform.Destroy

defer terraform.Destroy(t, terraformOptions)

Place this immediately after creating terraformOptions, before InitAndApply. If the test panics, the deferred function still runs.

Estimate test cost before running

For the FastAPI integration test:

• 1x t2.micro EC2: ~$0.012/hour
• 1x ALB: ~$0.008/hour
• 1x db.t3.micro RDS: ~$0.017/hour
• 10-minute test run: ~$0.006 total

Running this test 10 times per day = $0.06/day = $1.80/month. Negligible for the confidence it provides.

The E2E test adds an RDS instance and runs longer (~30 min including DB provisioning): roughly $0.04 per run, plus the one-time RDS create overhead. Call it ~$0.50 per E2E run as a safe budgeting number.

Test pollution

Parallel tests using random.UniqueId() keep resource names from colliding within a single run, but they don't help if a previous run failed to destroy. Orphaned ALBs, ASGs, and RDS instances from crashed test runs accumulate quickly. Two mitigations:

1. Tag every test resource with Purpose = "terratest" and CreatedAt = <timestamp>, then run a scheduled Lambda (or aws-nuke in a sandbox account) to delete anything older than 24 hours.
2. Use a dedicated AWS sub-account for tests so a runaway cleanup script can't touch shared resources.

To conclude

The FastAPI module now has a four-layer testing strategy:

The tests run fastest-first. A formatting error is caught before any AWS resource is created. A bad IAM policy is caught in the integration test before it reaches staging. A broken database integration is caught in the E2E test before it reaches production.

This is the testing pyramid applied to infrastructure: cheap tests cover most of the surface area; expensive tests cover the integrations that cheap tests cannot reach.

The remaining open item from the Day 16 checklist: private networking. The next module — VPC with public, private, and database subnets — is the foundation that all the other modules build on. Every test that currently uses the default VPC will be updated to use this module.

This post is part of a 30-day Terraform learning journey.
